Class 150~2500 Tilting Wafer Check Valve
Caratteristiche:
- Wafer type body, tilting type disc
- Materials: ASTM A105, ASTM A216 WCB, A217 WC6, A351CF8, A351CF8M, A351 CF3, A351 CF3M, A351 CN7M and according customer request
According to following standards:
- Design and Manufacture: API 594, ANSI B16.34, API6D
- Face to face (end to end): ANSI B16.10, API6D
- Flanged connection: 2"~24" to ANSI B16.5, 26"~36" to MSS-SP-44 or to API605/ASME B16.47 on request
- Butt welded end: ANSI B16.25
- Test and inspection: API598, API6D
 |
 |
 |
Info tecniche
|
MATERIALS |
|
|
Part name |
Material |
|
Body seat |
Integral / Stainless steel overlay / Stellited overlay |
|
Disc seat |
Integral /Stainless steel overlay / Stellited overlay |
|
Pin |
Carbon steel/ Stainless steel |
|
Gasket pin |
Stainless steel |
|
Part name |
WCB |
A105 |
LCB |
LF2 |
|
Disc |
A216 Gr WCB |
A105 |
A352 Gr LCB |
A350 Gr LF2 |
|
Body |
A216 Gr WCB |
A105 |
A352 Gr LCB |
A350 Gr LF2 |
|
Part name |
CF8M |
F 316 |
CF8 |
F 304 |
|
Disc |
A351 Gr CF8M |
A182 F 316 |
A351 Gr CF8 |
A182 F304 |
|
Body |
A351 Gr CF8M |
A182 F 316 |
A351 Gr CF8 |
A182 F304 |
| Class 150 ~ 2500 Tilting Wafer Check Valve |
|

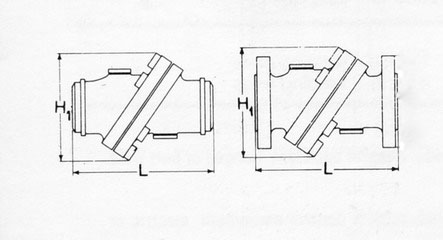

Dimensions |
|||||||||||||
|
ANSI 150 - Fig. 3350 |
|||||||||||||
|
Size |
inch |
2 |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
24 |
|
L |
mm |
60 | 73 | 73 | 98 | 127 | 146 | 181 | 184 | 191 | 203 | 219 | 222 |
|
D |
mm |
105 | 136 | 175 | 222 | 279 | 340 | 410 | 451 | 515 | 549 | 606 | 717 |
|
Dimensions |
|||||||||||||
|
ANSI 300 - Fig. 3355 |
|||||||||||||
|
Size |
inch |
2 |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
24 |
|
L |
mm |
60 | 73 | 73 | 98 | 127 | 146 | 181 | 222 | 232 | 264 | 292 | 318 |
|
D |
mm |
111 | 149 | 181 | 251 | 309 | 362 | 422 | 485 | 540 | 597 | 654 | 774 |
|
Dimensions |
|||||||||||||
|
ANSI 600 - Fig. 3360 |
|||||||||||||
|
Size |
inch |
2 |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
24 |
|
L |
mm |
60 | 73 | 79 | 137 | 165 | 213 | 229 | 273 | 305 | 362 | 368 | 438 |
|
D |
mm |
111 | 149 | 194 | 267 | 320 | 400 | 457 | 492 | 565 | 613 | 683 | 790 |
|
Dimensions |
|||||||||||||
|
ANSI 900 - Fig. 3365 |
|||||||||||||
|
Size |
inch |
2 |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
24 |
|
L |
mm |
70 | 83 | 102 | 159 | 206 | 241 | 292 | 356 | 384 | 451 | 451 | 495 |
|
D |
mm |
143 | 169 | 206 | 289 | 359 | 435 | 498 | 521 | 575 | 638 | 698 | 838 |
|
Dimensions |
|||||||||||||
|
ANSI 1500 - Fig. 3370 |
|||||||||||||
|
Size |
inch |
2 |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
24 |
|
L |
mm |
70 | 83 | 102 | 159 | 206 | 248 | 305 | 356 | 384 | 468 | 533 | 559 |
|
D |
mm |
143 | 174 | 209 | 283 | 353 | 435 | 521 | 578 | 641 | 705 | 756 | 902 |
|
Dimensions |
||||||||
|
ANSI 2500 - Fig. 3375 |
||||||||
|
Size |
inch |
2 |
3 |
4 |
6 |
8 |
10 |
12 |
|
L |
mm |
70 |
86 |
105 |
159 |
206 |
254 |
305 |
|
D |
mm |
145 |
195 |
234 |
315 |
386 |
475 |
550
|
