Catalogo | Class 150~600 Cryogenic Gate Valve

Class 150~600 Cryogenic Gate Valve

Caratteristiche:
- OS&Y, Rising stem, Flexible Wedge
- Bolted Bonnet, Threaded or welded seat ring
- Body and Cover materials: ASTM A216 WCB, A217 WC6, A351 CF8, A351 CF8M, A351 CF3, A351 CF3M, A351 CN7M, and according to customer request
According to following standards:
- Design and Manufacture: ANSI B16.34, API 600 API6D, API603, BS1414
- Face to face (end to end): ANSI B16.10, API6D
- Flanged connection: 2"~24" to ANSI B16.5, 26"~36" to MSS-SP-44 or to API605, to ANSI B16.47 on request
- Butt welded end: ANSI B16.25
- Test and inspection: API598, API6D

Info tecniche

MATERIALS
Part	Material
Grease nipple	Brass
Grub screw	Carbon steel
Hand wheel nut	Carbon steel
Hand wheel	Malleable lron/cast steel/ ducile lron/fabricated steel
Yoke nut	Carbon steel/SS
Eye bolt and nut	A 193 B7/A194 2H~A193 B8/A194 G8
Pin	Carbon steel/stainless steel
Stem nut	A 439-D2/cu-alloy
Gland flange	Carbon steel/equivalent to body material
Gland	Stainless steel
Back seat	Stainless steel
Stem	Stainless steel
Seat ring	CS+SS/SS/SS+STL
Wedge	See body material

Part name	WCB	LCB	WC6	WC9
Bolt and nut	A193 Gr B7/A194 Gr 2H	A320 Gr L7/A194 Gr 4	A193 Gr B16/A194 Gr 4/7	A193 Gr B16/A194 Gr 4/7
Gland Packing	Graphite	Graphite	Graphite	Graphite
Gasket	Spiral wound/Soft lron	Spiral wound/Soft lron	Spiral wound/SS304	Spiral wound/SS304
Bonnet	A216 Gr WCB	A352 Gr LCB	A271 Gr WC6	A271 Gr WC9
Body	A216 Gr WCB	A352 Gr LCB	A271 Gr WC6	A271 Gr WC9

Part name	C5	C12	CF8	CF8M
Bolt and nut	A193 Gr B16/A194 Gr 4/7	A193 Gr B16/A194 Gr 4/7	A193 B8/A194 8	A193 B8/A194 B8
Gland Packing	Graphite	Graphite	Graphite	Graphite
Gasket	Spiral wound/Soft lron	Spiral wound/Soft lron	Spiral wound/SS304	Spiral wound/SS316
Bonnet	A217 Gr C5	A217 Gr C12	A351 Gr CF8	A351 Gr CF8M
Body	A217 Gr C5	A217 Gr C12	A351 Gr CF8	A351 Gr CF8M

CLASS 150~1500 CAST STEEL GATE VALVE

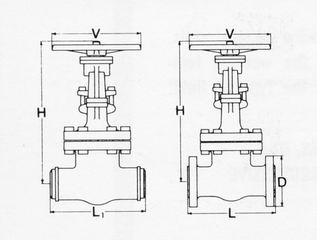

Class	Dimensions
ANSI 150 Fig. 2120 Fig. 2120W	Size	inch	2	2-1/2	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	34	36
	L-RF	mm	178	191	203	229	267	292	330	356	381	406	432	457	508	559	610	610	710	762	711
	L1-BW	mm	216	241	283	305	403	419	457	502	572	610	660	711	813	864	914	914	965	1016	1016
	L2-RTJ	mm	191	203	216	241	279	305	343	368	394	419	445	470	521	559	610	610	710	762	711
	H	mm	400	490	510	585	795	1015	1230	1465	1755	2030	2210	2510	2880	2930	3150	3200	3450	3600	3735
	V	mm	200	200	250	300	350	350	400	450	500	500	600	750	750	915	915	915	1000	1000	1000
ANSI 300 Fig. 2130 Fig. 2130W	Size	inch	2	2-1/2	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	34	36
	L-RF	mm	216	241	283	305	403	419	457	502	762	838	914	991	1143	1245	1346	1397	1524	1626	1727
	L1-BW	mm	216	241	283	305	403	419	457	502	762	838	914	991	1143	1245	1346	1397	1524	1626	1727
	L2-RTJ	mm	232	257	298	321	419	435	473	518	778	854	930	1010	1165	1270	1372	1422	1553	1654	1756
	H	mm	470	525	533	610	845	1050	1295	1600	1830	2035	2195	2470	2900	3100	3360	3650	3700	3750	3800
	V	mm	200	200	250	300	350	350	400	450	500	500	600	750	750	915	915	915	1000	1000	1000
ANSI 600 Fig. 2140 Fig. 2140W	Size	inch	2	2-1/2	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	34	36
	L-RF	mm	292	330	356	432	559	660	787	838	889	991	1092	1194	1397	1448	1549	1651	1778	1930	2083
	L1-BW	mm	292	330	356	432	559	660	787	838	889	991	1092	1194	1397	1448	1549	1651	1778	1930	2083
	L2-RTJ	mm	295	333	359	435	562	664	791	841	892	994	1095	1200	1407	1461	1562	1664	1794	1946	2099
	H	mm	495	550	615	735	1005	1245	1480	1730	1915	2050	2260	2620	2900	3075	3238	3600	3940	4250	4400
	V	mm	200	250	300	350	450	500	600	750	850	850	960	960	1000	1000	1250	1250	1500	1650	1800
ANSI 900 Fig. 2150 Fig. 2150W	Size	inch	2	2-1/2	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	34	36
	L-RF	mm	368	419	381	457	610	737	838	965	1029	1130	1219	1321	1549
	L1-BW	mm	368	419	381	457	610	737	838	965	1029	1130	1219	1321	1549
	L2-RTJ	mm	371	422	384	460	613	740	841	968	1038	1140	1232	1334	1568
	H	mm	590	700	740	870	1120	1390	1592	1765	2025	2175	2510	2750	3240
	V	mm	250	300	350	450	500	600	750	850	850	960	960	1000	1000
ANSI 1500 Fig. 2160 Fig. 2160W	Size	inch	2	2-1/2	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	34	36
	L-RF	mm	368	419	470	546	705	832	991	1130	1257	1384	1537	1664	1943
	L1-BW	mm	368	419	470	546	705	832	991	1130	1257	1384	1537	1664	1943
	L2-RTJ	mm	371	422	473	549	711	841	1000	1146	1276	1407	1559	1686	1972
	H	mm	615	705	750	927	1190	1525	1855	2185	2215	2380	2580	2195	3400
	V	mm	250	350	350	450	600	750	850	850	960	960	1000	1000	1250
