Class 600~2500 Pressure Seal Gate Valve

Caratteristiche:
- OS&Y, Rising stem, Flexible Wedge
- Pressure seal Bonnet, Threaded or welded seat ring
- Body and Cover materials: ASTM A216 WCB, A217 WC6, A351 CF8, A351 CF8M, A351 CF3, A351 CF3M, A351 CN7M, and according to customer request
According to following standards:
- Design and Manufacture: ANSI B16.34, API 600 API6D, API603, BS1414
- Face to face (end to end): ANSI B16.10, API6D
- Flanged connection: 2"~24" to ANSI B16.5
- Butt welded end: ANSI B16.25
- Test and inspection: API598, API6D

Info tecniche

MATERIALS
Part name	Material
Grease nipple	Brass
Grub screw	Carbon steel
Hand wheel nut	Carbon steel
Hand wheel	Malleable lron/Cast steel/Welded steel
Yoke nut	Carbon steel/SS
Eye bolt and nut	A 193 B7/A194 2H~A193 B8/A194 G8
Pin	Carbon steel/stainless steel
Stem Nut	A 439-D2/cu-alloy
Gland flange	Carbon steel/equivalent to body material
Gland	Stainless steel
Gland bush	See body material
Back seat
Stem
Seat ring
Wedge

Part name	WCB	LCB	WC6	WC9
Bolt and nut	A193 Gr B7/A194 Gr 2H	A320 Gr L7/A194 Gr 4	A193 Gr B16/A194 Gr 4/7	A193 Gr B16/A194 Gr 4/7
Gland packing	Graphite	Graphite	Graphite	Graphite
Gasket	Soft lron	Soft lron	SS304	SS304
Thrust ring	A105	A182 F304	A182 F11	A182 F22
Back up ring	A105	A182 F304	A182 F11	A182 F22
Yoke	A216 Gr WCB	A352 Gr LCB	A271 Gr WC6	A271 Gr WC9
Bonnet	A216 Gr WCB	A352 Gr LCB	A271 Gr WC6	A271 Gr WC9
Body	A216 Gr WCB	A352 Gr LCB	A271 Gr WC6	A271 Gr WC9

Part name	C5	C12	CF8	CF8M
Bolt and nut	A193 Gr B7/A194 Gr 2H	A193 Gr B16/A194 Gr 4/7	A193 B8/A194 8	A193 B8M/A194 8M
Gland packing	Graphite	Graphite	Graphite	Graphite
Gasket	SS304	SS304	SS304	SS316
Thrust ring	A182 F22	A182 F9	A182 F304	A182 F316
Back up ring	A182 F22	A182 F9	A182 F304	A182 F316
Yoke	A217 Gr C5	A217 Gr C12	A351 Gr CF8	A351 Gr CF8M
Bonnet	A217 Gr C5	A217 Gr C12	A351 Gr CF8	A351 Gr CF8M
Body	A217 Gr C5	A217 Gr C12	A351 Gr CF8	A351 Gr CF8M

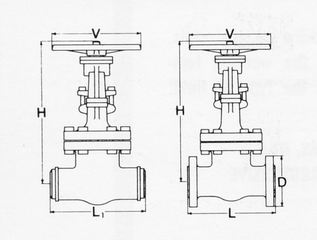

CLASS 600~2500 PRESSURE-SEAL GATE VALVE

Class	Dimensions
ANSI 600 Fig. 2140 SB-SBW	Size	inch	2	2-1/2	3	4	5	6	8	10	12	14	16	18	20	24
	L-L1	mm	292	330	356	432	508	559	660	787	838	889	991	1092	1194	1397
	L1-Short	mm	178	216	254	305	381	457	584	711	813	889	991	1092	1194	1397
	H	mm	525	610	650	775	825	1050	1200	1450	1600	1800	2050	2245	2400	2670
	V	mm	250	250	300	350	400	500	600	600	400~	450~	450~	500~	500~	550~
ANSI 900 Fig. 2150 SB-SBW	Size	inch	2	2-1/2	3	4	5	6	8	10	12	14	16	18	20
	L-L1	mm	368	419	381	457	559	610	737	838	965	1029	1130	1219	1321
	L1-Short	mm	216	254	305	356	432	508	660	787	914	991	1092	1219	1321
	H	mm	550	645	670	790	855	1075	1225	1500	1635	1830	2145	2300	2485
	V	mm	300	300	300	400	450	300~	350~	400~	400~	450~	500~	500~	550~
ANSI 1500 Fig. 2160 SB-SBW	Size	inch	2	2-1/2	3	4	5	6	8	10	12
	L-L1	mm	368	419	470	546	673	705	832	991	1130
	L1-Short	mm	216	254	305	406	483	559	711	864	991
	H	mm	570	670	725	850	890	1125	1235	1520	1650
	V	mm	300	300	300~	300~	300~	350~	350~	400~	400~
ANSI 1500 Fig. 2170 SB-SBW	Size	inch	2	2-1/2	3	4	5	6	8	10	12
	L-L1	mm	451	508	578	673	794	914	1022	1270	1422
	L1-Short	mm	279	330	368	457	533	610	762	914	1041
	H	mm	600	695	740	890	970	1135	1300	1430	1700
	V	mm	400	450	300~	350~	350~	350~	400~	500~	500~
