Catalogo | Class 150~1500 Cast Steel Gate Valve

Class 150~1500 Cast Steel Gate Valve

Caratteristiche:

- OS&Y, Rising stem, Flexible Wedge
- Bolted Bonnet, Threaded or welded seat ring
- Body and Cover materials:ASTM A216 WCB, A217 WC6, A351 CF8, A351 CF8M, A351 CF3, A351
- CF3M, A351 CN7M, and according to customer request

According to following standards:
- Design and Manufacture: ANSI B16.34, API 600 API6D, API603, BS1414
- Face to face (end to end): ANSI B16.10, API6D
- Flanged connection: 2"~24" to ANSI B16.5, 26"~36" to MSS-SP-44 or to API605, to ANSI B16.47 on request
- Butt welded end: ANSI B16.25
- Test and inspection: API598, API6D

Info tecniche

MATERIALS
Part	Material
Grease nipple	Brass
Grub screw	Carbon steel
Hand wheel nut	Carbon steel
Hand wheel	Malleable lron/cast steel/ ducile lron/fabricated steel
Yoke nut	Carbon steel/SS
Eye bolt and nut	A 193 B7/A194 2H~A193 B8/A194 G8
Pin	Carbon steel/stainless steel
Stem nut	A 439-D2/cu-alloy
Gland flange	Carbon steel/equivalent to body material
Gland	Stainless steel
Back seat	Stainless steel
Stem	Stainless steel
Seat ring	CS+SS/SS/SS+STL
Wedge	See body material

Part name	WCB	LCB	WC6	WC9
Bolt and nut	A193 Gr B7/A194 Gr 2H	A320 Gr L7/A194 Gr 4	A193 Gr B16/A194 Gr 4/7	A193 Gr B16/A194 Gr 4/7
Gland Packing	Graphite	Graphite	Graphite	Graphite
Gasket	Spiral wound/Soft lron	Spiral wound/Soft lron	Spiral wound/SS304	Spiral wound/SS304
Bonnet	A216 Gr WCB	A352 Gr LCB	A271 Gr WC6	A271 Gr WC9
Body	A216 Gr WCB	A352 Gr LCB	A271 Gr WC6	A271 Gr WC9

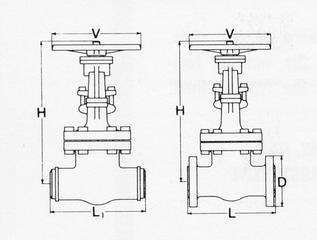

CLASS 150~1500 CAST STEEL GATE VALVE

Class	Dimensions
ANSI 150 Fig. 2120 Fig. 2120W	Size	inch	2	2-1/2	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	34	36
	L-RF	mm	178	191	203	229	267	292	330	356	381	406	432	457	508	559	610	610	710	762	711
	L1-BW	mm	216	241	283	305	403	419	457	502	572	610	660	711	813	864	914	914	965	1016	1016
	L2-RTJ	mm	191	203	216	241	279	305	343	368	394	419	445	470	521	559	610	610	710	762	711
	H	mm	400	490	510	585	795	1015	1230	1465	1755	2030	2210	2510	2880	2930	3150	3200	3450	3600	3735
	V	mm	200	200	250	300	350	350	400	450	500	500	600	750	750	915	915	915	1000	1000	1000
ANSI 300 Fig. 2130 Fig. 2130W	Size	inch	2	2-1/2	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	34	36
	L-RF	mm	216	241	283	305	403	419	457	502	762	838	914	991	1143	1245	1346	1397	1524	1626	1727
	L1-BW	mm	216	241	283	305	403	419	457	502	762	838	914	991	1143	1245	1346	1397	1524	1626	1727
	L2-RTJ	mm	232	257	298	321	419	435	473	518	778	854	930	1010	1165	1270	1372	1422	1553	1654	1756
	H	mm	470	525	533	610	845	1050	1295	1600	1830	2035	2195	2470	2900	3100	3360	3650	3700	3750	3800
	V	mm	200	200	250	300	350	350	400	450	500	500	600	750	750	915	915	915	1000	1000	1000
ANSI 600 Fig. 2140 Fig. 2140W	Size	inch	2	2-1/2	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	34	36
	L-RF	mm	292	330	356	432	559	660	787	838	889	991	1092	1194	1397	1448	1549	1651	1778	1930	2083
	L1-BW	mm	292	330	356	432	559	660	787	838	889	991	1092	1194	1397	1448	1549	1651	1778	1930	2083
	L2-RTJ	mm	295	333	359	435	562	664	791	841	892	994	1095	1200	1407	1461	1562	1664	1794	1946	2099
	H	mm	495	550	615	735	1005	1245	1480	1730	1915	2050	2260	2620	2900	3075	3238	3600	3940	4250	4400
	V	mm	200	250	300	350	450	500	600	750	850	850	960	960	1000	1000	1250	1250	1500	1650	1800
ANSI 900 Fig. 2150 Fig. 2150W	Size	inch	2	2-1/2	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	34	36
	L-RF	mm	368	419	381	457	610	737	838	965	1029	1130	1219	1321	1549
	L1-BW	mm	368	419	381	457	610	737	838	965	1029	1130	1219	1321	1549
	L2-RTJ	mm	371	422	384	460	613	740	841	968	1038	1140	1232	1334	1568
	H	mm	590	700	740	870	1120	1390	1592	1765	2025	2175	2510	2750	3240
	V	mm	250	300	350	450	500	600	750	850	850	960	960	1000	1000
ANSI 1500 Fig. 2160 Fig. 2160W	Size	inch	2	2-1/2	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	34	36
	L-RF	mm	368	419	470	546	705	832	991	1130	1257	1384	1537	1664	1943
	L1-BW	mm	368	419	470	546	705	832	991	1130	1257	1384	1537	1664	1943
	L2-RTJ	mm	371	422	473	549	711	841	1000	1146	1276	1407	1559	1686	1972
	H	mm	615	705	750	927	1190	1525	1855	2185	2215	2380	2580	2195	3400
	V	mm	250	350	350	450	600	750	850	850	960	960	1000	1000	1250
